In this post, we share our first hands-on experiences with Newton Physics — a new, lightweight simulation engine designed to be both easy to use and fast, especially for robotics applications. When Newton Alpha was released, we were curious to see how it would perform in one of our most demanding testbeds: in-hand manipulation. Our goal was to evaluate whether Newton could become a serious candidate as our main simulation engine in the future. Newton Beta is now available — read more here.
TL;DR
- Some MuJoCo configurations don’t import automatically into Newton
- Almost everything can already be configured via
newton.solvers.SolverMuJoCo - We validated realism by running our real-world-tested RL controller
- Early training experiments show promising speed and convergence
- Thanks to the simple API, we plan to use Newton for student projects within the scope of our Advanced Deep Leaning for Robotics course at the TU Munich.
Running a real-world-tested RL controller in Newton Physics
For us to consider Newton as a main simulation engine, it’s crucial that the contact dynamics are both highly adjustable and stable. As a first experiment, we decided to run our real-world-tested RL controller in a Software-in-the-Loop (SIL) setup.
We already use a SIL setup with IsaacSim (our current primary simulation engine) as the backend. It allows us to test the RL controller script before deploying it on the real robot. Thanks to the simple message-based communication with the robot, the interface is straightforward, and adapting it for Newton was not difficult.
We’ve added the code with annotations below. The main challenges we encountered were:
- Actuator setup
- Friction configuration
For both, we found simple workarounds (see code). With everything configured correctly, the RL controller can now manipulate the object inside Newton. For us, this demonstrates that Newton already provides the essential features needed to simulate complex in-hand manipulation tasks.
Code
from itertools import product
import numpy as np
import time
import warp as wp
import newton
from newton.selection import ArticulationView
Packet definition
from dataclasses import dataclass, field
@dataclass
class CTRL_IN_PACKET:
counter: int = -1
q_measured_rad: np.ndarray = field(default_factory=lambda: np.zeros(12))
q_increment_counter_rad: np.ndarray = field(default_factory=lambda: np.zeros(12))
q_poti_rad: np.ndarray = field(default_factory=lambda: np.zeros(12))
dq_increment_radps: np.ndarray = field(default_factory=lambda: np.zeros(12))
tau_measured_Nm: np.ndarray = field(default_factory=lambda: np.zeros(12))
PWM: np.ndarray = field(default_factory=lambda: np.zeros(12))
active: int = 1
@dataclass
class CTRL_OUT_PACKET:
q_des: np.ndarray
◂ Packet definition
class NewtonSIL:
def __init__(self, frequency: int = 1000, headless=True, device=None):
self.headless = headless
self.device = device
self.sim_dt = 1.0 / frequency
self.model_builder_single = newton.ModelBuilder(gravity=0)
self.model_builder_single.add_mjcf(
"mj_resources/output/scene.xml", enable_self_collisions=True
)
Model builder setup
# Actuators from xml are ignored => set the parameters here
for i in range(len(self.model_builder_single.joint_dof_mode)):
self.model_builder_single.joint_dof_mode[i] = (
newton.JointMode.TARGET_POSITION
)
self.model_builder_single.joint_target_ke[i] = 5
self.model_builder_single.joint_target_kd[i] = 0.3
# Correct friction, as it is not yet read from the xml
for i in range(len(self.model_builder_single.shape_key)):
if self.model_builder_single.shape_key[i] == "object_0/object":
self.model_builder_single.shape_material_mu[i] = 1
elif self.model_builder_single.shape_key[i].startswith("hand/"):
if (
"_" in self.model_builder_single.shape_key[i]
and int(self.model_builder_single.shape_key[i].split("_")[-1]) % 3
== 2
):
self.model_builder_single.shape_material_mu[i] = 1
else:
self.model_builder_single.shape_material_mu[i] = 0.1
for i in range(len(self.model_builder_single.body_key)):
if self.model_builder_single.body_key[i] == "object_0/object":
self.model_builder_single.body_mass[i] = 0.08
self.model_builder_single.rigid_contact_torsional_friction = 0.015
self.model_builder_single.rigid_contact_rolling_friction = 0.0001
self.model_builder = newton.ModelBuilder(gravity=0)
self.num_envs = 10
self.model_builder.replicate(
self.model_builder_single, self.num_envs, spacing=(1.0, 1.0, 0.0)
)
◂ Model builder setup
# Create the final model and solver
self.model = self.model_builder.finalize()
self.solver = newton.solvers.SolverMuJoCo(
self.model,
use_mujoco_cpu=False,
integrator="implicitfast",
cone="elliptic",
impratio=1.1,
ncon_per_env=50,
njmax=500,
)
Overwrite ignored solver params
# Disable distal actuators 969154fcd2feb4e094d272da5c79bacfa39971e2
self.solver.mj_model.actuator_gainprm[3::4] *= 0
self.solver.mjw_model.actuator_gainprm.assign(
self.solver.mj_model.actuator_gainprm[None].repeat(self.num_envs, 0)
)
self.solver.mj_model.actuator_dynprm[3::4] *= 0
self.solver.mjw_model.actuator_dynprm.assign(
self.solver.mj_model.actuator_dynprm
) # [None].repeat(self.num_envs, 0))
self.solver.mj_model.actuator_biasprm[3::4] *= 0
self.solver.mjw_model.actuator_biasprm.assign(
self.solver.mj_model.actuator_biasprm[None].repeat(self.num_envs, 0)
)
self.solver.mj_model.geom_condim[:] = 4
self.solver.mjw_model.geom_condim.assign(self.solver.mj_model.geom_condim)
self.solver.mj_model.eq_solimp[:] = [0.98, 0.999, 0.01745329, 0.5, 2.0]
self.solver.mjw_model.eq_solimp.assign(self.solver.mj_model.eq_solimp)
self.solver.mj_model.eq_solref[:] = [0.0021, 1.2]
self.solver.mjw_model.eq_solref.assign(self.solver.mj_model.eq_solref)
self.solver.mj_model.dof_frictionloss[:] = 0.001
self.solver.mjw_model.dof_frictionloss.assign(
self.solver.mj_model.dof_frictionloss[None].repeat(self.num_envs, 0)
)
◂ Overwrite ignored solver params
# Allocate state buffer
self.state_0 = self.model.state()
self.state_1 = self.model.state()
self.control = self.model.control()
Set up articulation views
# Enumerate joints by names
fingers = ["ring", "middle", "fore", "thumb"]
dimensions = ["proximal", "knuckle", "middle"]
finger_names = [f"hand/{idx}" for idx in fingers]
joint_names = [
f"{f_name}_{dim}_joint"
for (f_name, dim) in product(finger_names, dimensions)
]
assert len(joint_names) == 12
self.joints_view = ArticulationView(
self.model,
"*",
exclude_joint_types=[newton.JointType.FREE, newton.JointType.DISTANCE],
)
self.joints_actuated_view = ArticulationView(
self.model,
"*",
exclude_joints=["*distal*"],
exclude_joint_types=[newton.JointType.FREE, newton.JointType.DISTANCE],
)
self.joint_ctrl_ids = np.array(
[
self.joints_actuated_view.joint_dof_names.index(
joint_name.split("/")[1]
)
for joint_name in joint_names
]
)
self.object_view = ArticulationView(self.model, "*", include_joints=["object"])
# goal setting not yet possible
# self.goal_view = ArticulationView(self.model, "*", include_links=["goal_object"])
self.default_object_pose = wp.clone(
self.object_view.get_dof_positions(self.model)
)
self.default_object_velocity = wp.clone(
self.object_view.get_dof_velocities(self.model)
)
# self.default_goal_pose = wp.clone(self.goal_view.get_link_transforms(self.model))
self.initial_dof_positions = wp.clone(
self.joints_view.get_dof_positions(self.model)
)
self.initial_dof_velocities = wp.clone(
self.joints_view.get_dof_velocities(self.model)
)
◂ Set up articulation views
# Open up the GUI and capture the graph of the simulation loop
if not self.headless:
self.viewer = newton.viewer.ViewerGL(headless=False)
self.viewer.set_model(self.model)
self.start_time = time.time()
self.sim_time = 0
self.sim_steps = 0
with wp.ScopedCapture() as capture:
# Doing two steps allows us to leave the state swapping inside the graph
for i in range(2):
self.state_0.clear_forces()
self.solver.step(
self.state_0, self.state_1, self.control, None, self.sim_dt
)
self.state_0, self.state_1 = self.state_1, self.state_0
self.graph = capture.graph
Helper functions to interact with the simulation
def reset_object(self, position: np.ndarray = None, rotation: np.ndarray = None):
self.object_view.set_dof_positions(self.state_0, self.default_object_pose)
self.object_view.set_dof_velocities(self.state_0, self.default_object_velocity)
def reset_hand(self):
self.joints_view.set_dof_positions(self.state_0, self.initial_dof_positions)
self.joints_view.set_dof_velocities(self.state_0, self.initial_dof_velocities)
def gravity_on(self):
self.model.gravity = np.array([0, 0, -9.81])
if self.device == "cpu":
self.solver.mj_model.opt.gravity = np.array([0, 0, -9.81])
elif self.device == "warp":
self.solver.mjw_model.opt.gravity.assign(np.array([0, 0, -9.81]))
def gravity_off(self):
self.model.gravity = np.array([0, 0, 0.0])
if self.device == "cpu":
self.solver.mj_model.opt.gravity = np.array([0, 0, 0.0])
elif self.device == "warp":
self.solver.mjw_model.opt.gravity.assign(np.array([0, 0, 0.0]))
def set_goal(self, key: str, goal: np.ndarray):
# TODO: Vizualize goal object in viewer
pass
◂ Helper functions to interact with the simulation
# Pass the simulated robot measurements to the RL controller
def get_in_pckts(self) -> CTRL_IN_PACKET:
joint_angles = self.joints_actuated_view.get_attribute(
"joint_q", self.state_0
).numpy()[0, self.joint_ctrl_ids]
return CTRL_IN_PACKET(
self.sim_steps,
joint_angles,
joint_angles,
joint_angles,
)
# Every time we recieve control targets from the RL controller -> simulate
def send_out_pckt(self, ctrl_out_pckt: CTRL_OUT_PACKET) -> None:
ctrl_npy = np.zeros((self.num_envs, 12))
ctrl_npy[:, self.joint_ctrl_ids] = ctrl_out_pckt.q_des.copy()
ctrl = wp.array(
ctrl_npy, dtype=wp.float32, device=self.control.joint_target.device
)
self.joints_actuated_view.set_attribute("joint_target", self.control, ctrl)
wp.capture_launch(self.graph)
if not self.headless:
self.viewer.begin_frame(self.sim_time)
self.viewer.log_state(self.state_0)
# self.viewer.log_contacts(self.contacts, self.state_0)
self.viewer.end_frame()
self.sim_time += self.sim_dt * 2
self.sim_steps += 1Learning with MuJoCo Warp backend works

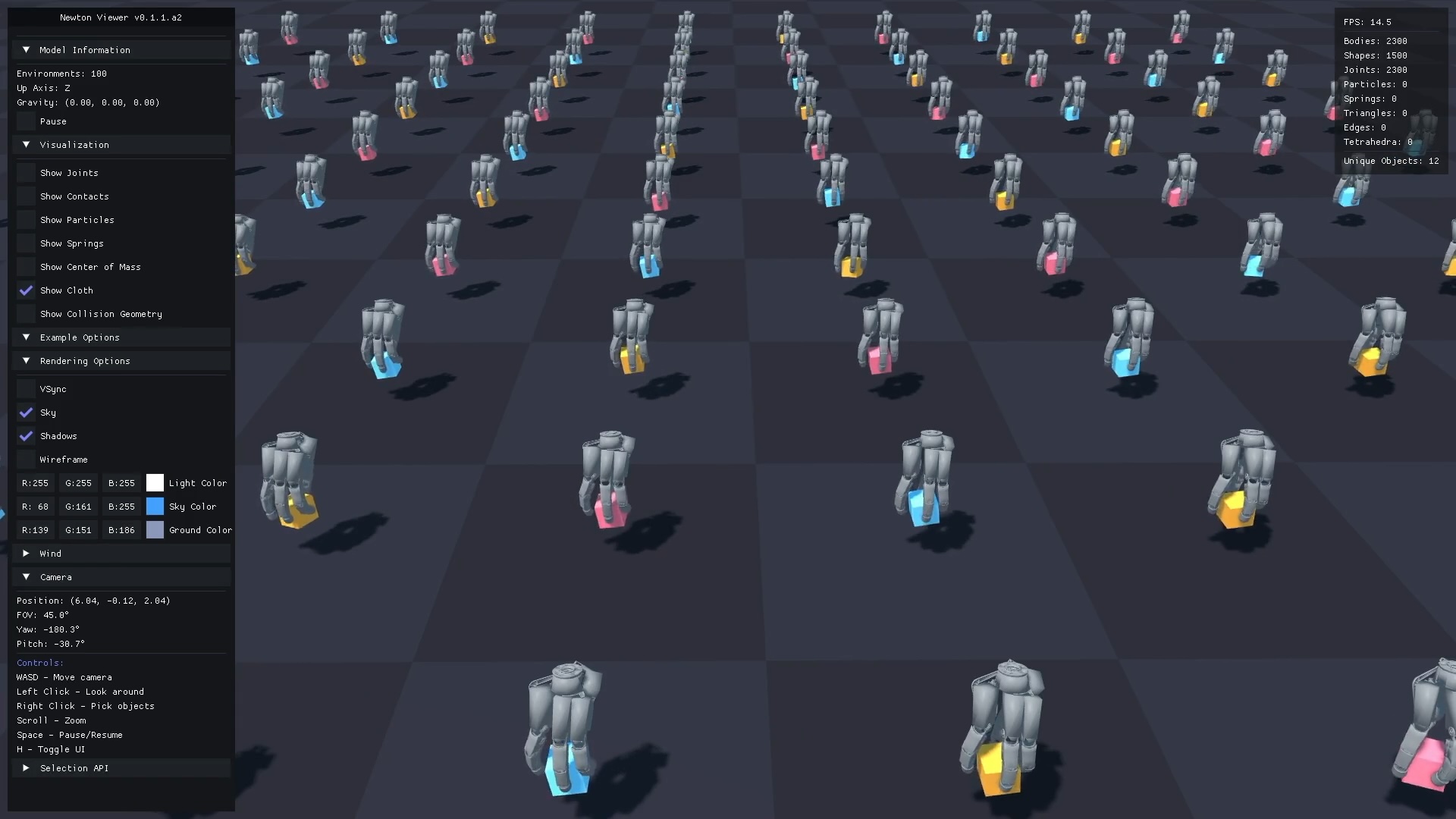

As the next step, we began implementing a simplified version of our full simulation backend. In this setup, we ignored all configurations and left out domain randomization. The main effort was in providing the required states to our learning framework and enabling detailed access for resetting the simulation.
While this took a bit more time to implement, it is now fully functional. Training — despite not yet tuned for maximum speed — already runs at a pace comparable to our IsaacSim-based setup (both run at around 5 hours on a simple desktop GPU, Nvidia Quadro RTX 4000). This is a promising sign that Newton can keep up with our existing workflow while offering a simpler and lighter interface.
Conclusion
For us, this opens the door to using Newton not only in research but also in teaching contexts, such as for the student projects in the “Advanced Deep Leaning for Robotics” course at Technical University of Munich (TUM), where ease of use and speed are key.
This work was carried out by Dominik Winkelbauer and Johannes Pitz from the AIDX Lab, TUM.
